Z41Y American standard wedge gate valve
Product description
Z41Y type 150 (Lb)~600(Lb) flange gate valve: manual, flange connection, open rod wedge type rigid single gate, seat sealing surface material is cemented carbide, pressure level 150 (Lb)~600(Lb), valve body material is carbon steel (Z41Y-150(Lb)~600(Lb)), stainless steel (Z41Y-150(Lb)P~600(Lb)P) American standard gate valve.
Product performance parameters
| Model number | Pressure level（Lb） | Applicable temperature/℃ | Applicable media |
| Z41Y-150(Lb)~600(Lb) | 150~600 | ≤425 | Water, steam, oil, etc. |
| Z41Y-150(Lb)P~600(Lb)P | 150~600 | ≤150 | Corrosive media such as nitric acid |
Product parts and materials
| Model number | Material | |||
| Valve body, valve cover | Valve stem | Gate | Packing, washer | |
| Z41Y-150(Lb)~600(Lb) | WCB | 2Cr13 | WCB | V-shaped PTFE, flexible graphite ring, flexible graphite winding pad, PTFE sheet |
| Z41Y-150(Lb)P~600(Lb)P | ZG1Cr18Ni9Ti | 1Cr18Ni9Ti | ZG1Cr18Ni9Ti | |

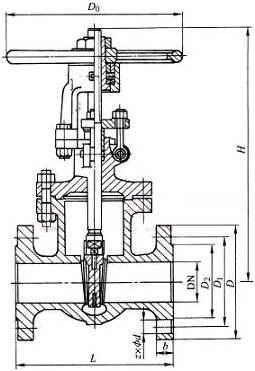

【Structure picture】
